Holemaker Pro 100 Magnetic Base Drill, 240v, 3mt, Capacity: 100mm Diameter X 110mm

Features

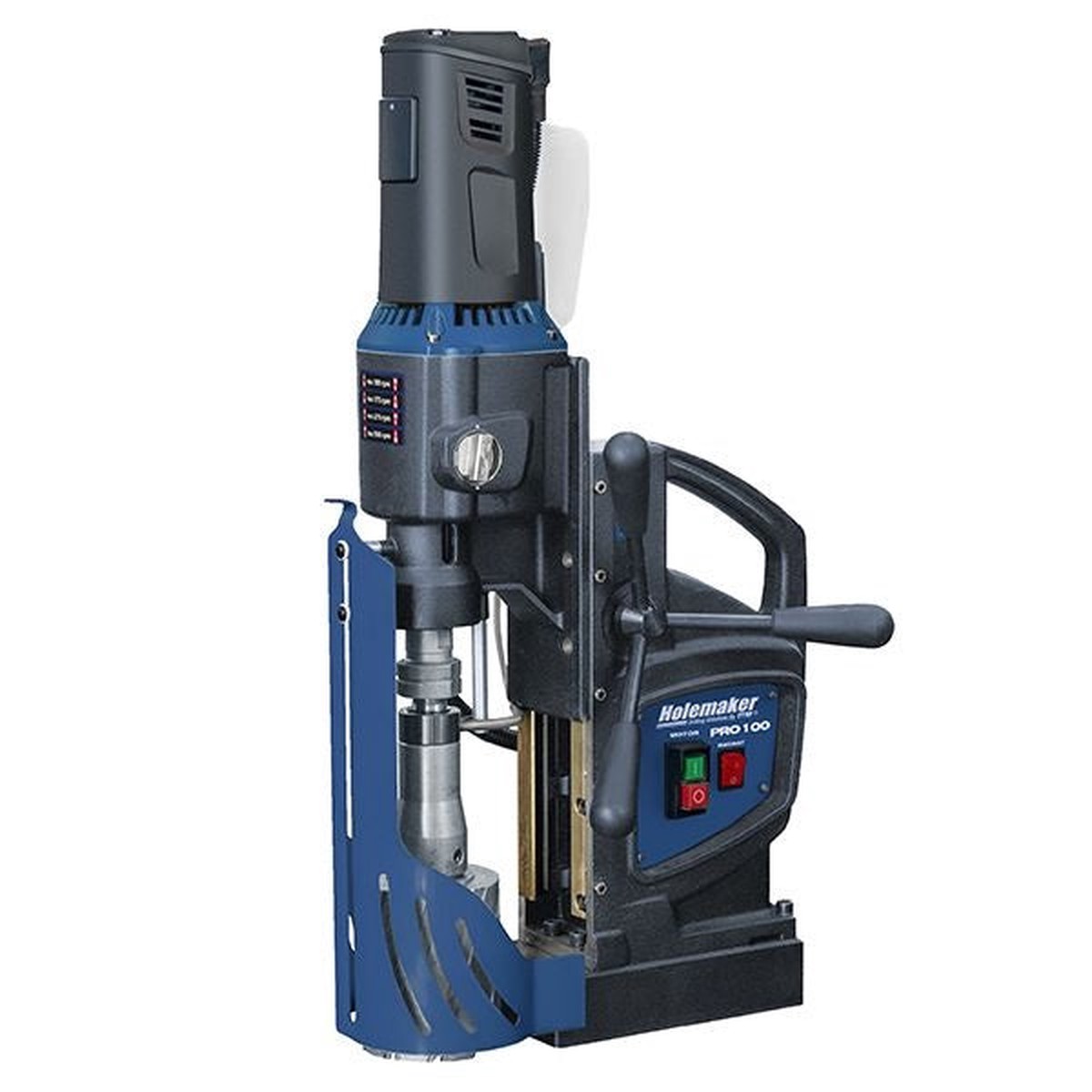

The Holemaker PRO 100 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 100mm diameter by 110mm depth.

The 1500w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 3 Morse Taper spindle bore for use with taper shank drills, tapping head (M30 Capacity) and taper shank reamers.

Supplied complete with side mounted coolant system and arbor for use with ” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4″ shank cutters up to 110mm diameter and 110mm depth. 1100ml pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling.

• New generation Italian made motor and heavy-duty 4-speed gearbox
• Rigid design extends tool life
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• Magnetic Power Adhesion Control (MPAC) detects adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece
• Semi-automatic gib adjustment
• Lightweight design

Specifications

• Capacity (Diameter): 100mm
• Capacity (Depth): 110mm
• Capacity (Twist Drills): 31.75mm
• Spindle Taper: MT3
• Motor Power: 1500 Watt 240V Motor
• Input Power: 1650 Watt
• 4-speed gearbox: 100 / 175 / 275 / 500rpm
• Weight: 24kg
• Magnetic Dead Lift: 18,000Nm on 25mm steel plate
• Stroke: 225mm
• Height (Min./Max.): 531mm/756mm
