Name: 1427NCGPG19B - STRAIN RELIEF CORDGRIP PG19 24MM DIA 15MM WIRE NYLON BLK 42 LONG
SKU: AOE68179384
Availability: InStock

New

1427NCGPG19B – STRAIN RELIEF CORDGRIP PG19 24MM DIA 15MM WIRE NYLON BLK 42 LONG

~~$3.95~~ $3.16

SKU: AOE68179384
Product Category: Hardware
Availability: In stock

Short Description.

Liquidtight cordgrip made from nylonAvailable in black (RAL 9005) Used where cable is entering or leaving an enclosure.Accepts a wide range of cable diameters due...

Free Shipping Eligible & Easy Returns
Fast Delivery – Ships Within 24-48 Hours
100% Quality Guarantee & Secure Checkout

Description
Reviews (0)

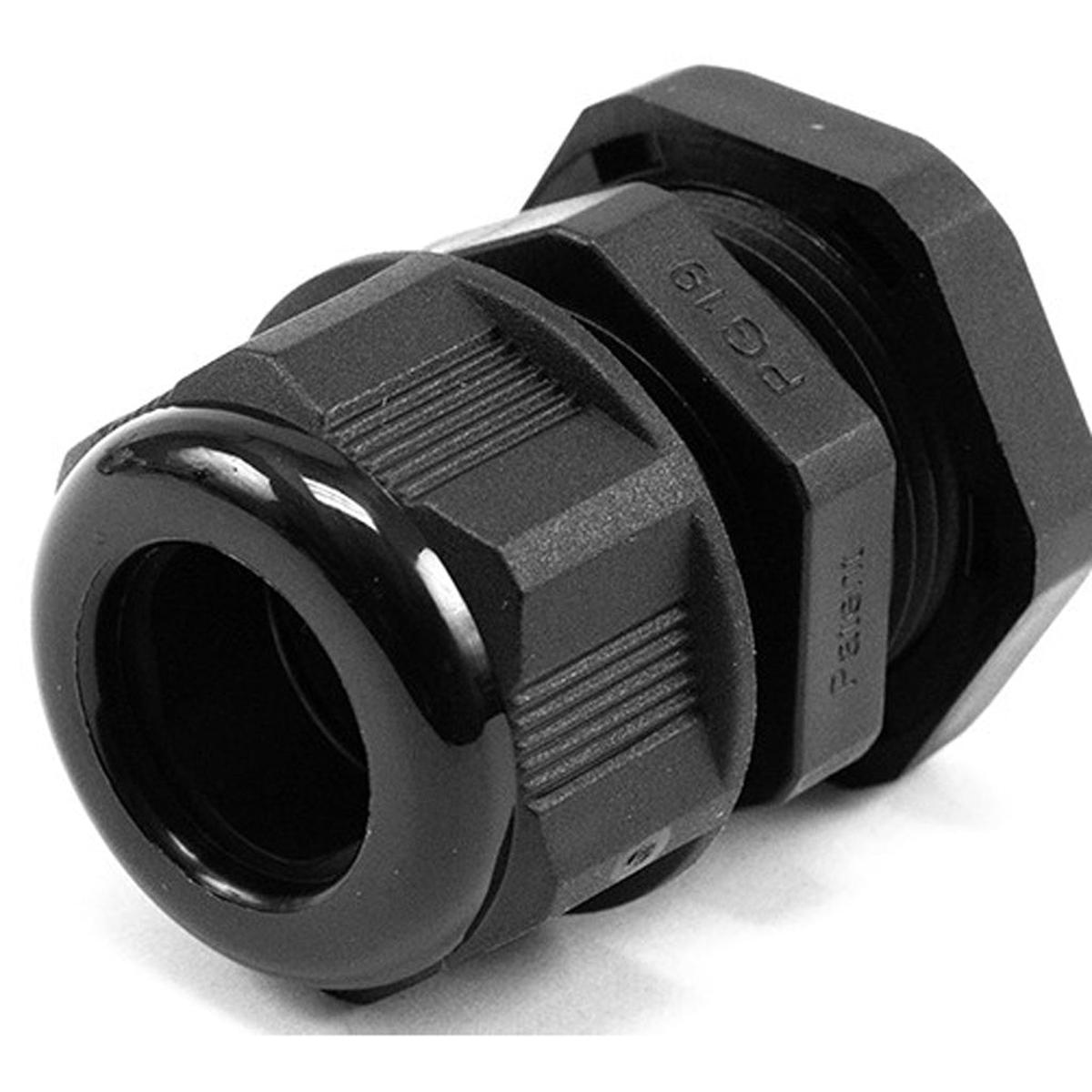

Liquidtight cordgrip made from nylon
Available in black (RAL 9005)
Used where cable is entering or leaving an enclosure.
Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
Nylon locknut and EPDM oring included (as shown).
Operating Temperatures:
- Static state: 40C to 100C (up to 120 instantaneous)
- Dynamic state: 20C to 80C (up to 100 instantaneous)
Designed to meet NEMA Type 4 4X 6 6P 12 & 13 Protection to IP68.
UL94V2 flammability rating.
UL listed.
